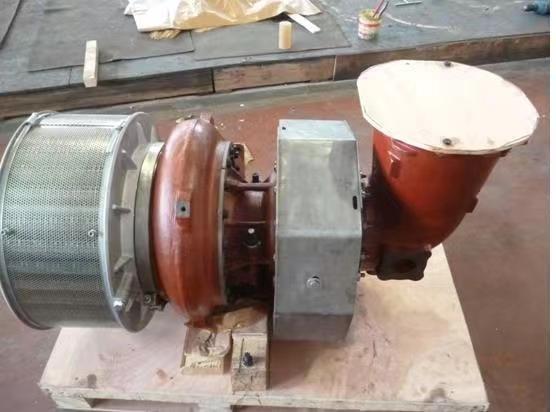

    ABB TPS 52-D01 Turbocharger Used In Marine Diesel Engine

    Ask Lasest Price
    Brand Name : BF
    Model Number : TPS
    Certification : ISO 9001:2000
    Price : negotiable
    Payment Terms : Western Union, L/C, , T/T
    Supply Ability : 5000 pieces per year
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    ABB TPS 52-D01 Turbocharger Used In Marine Diesel Engine

    ABB Turbocharger TPS 52-D01 for Ship Diesel Engine


    ABB Turbocharger TPS 52-D01 Introduction


    Design

    1. Compressor type: Centrifugal compressor with forward and backward curved blades
    2. Pressure Plate: Vane Diffuser Type
    3. Bearing box: There are two types: water-cooled and non-water-cooled, which can be used as needed.
    4. Total efficiency: greater than 62%

    Features

    1. TPS 52-D01 Turbocharger consists of a mixed-flow turbine and a radial compressor, with internal bearings lubricated by engine oil;
    2. A single machine can be equipped with 500-3000kw high-speed diesel engines and gas engines;
    3. Internally supported semi-floating plain bearings with cooled and uncooled bearing housing designs;
    4. A constant pressure mixing turbine is used to increase the volumetric flow through the nozzle ring through pulse application;
    5. The compressor impeller adopts rear inclined splitter blades to provide pressure in three different periods;
    6. T/C comprehensive efficiency is 62%-64%, maximum pressure ratio is 4.5;
    7. With compact structure and easy maintenance, TPS 52-D01 Turbocharger is widely used in marine diesel engine auxiliary generator sets or engine sets, etc.

    TPS series

    TPS44TPS52
    TPS48TPS57
    TPS50TPS61


    The ABB TPS turbocharger is a mixed-flow turbocharger, which consists of a single-stage mixed-flow turbine and a centrifugal compressor. It uses an inner support semi-floating sliding bearing and an external lubricating oil system. The air intake housing can freely rotate at 15° intervals according to the installation angle, and the turbine housing can freely rotate at 22.5° intervals. The flow range of this series of turbochargers is 0.7~5m3/s, the compression ratio range is 2.0~4.5, and the total efficiency is 64%. A single turbocharger can meet the requirements of high-speed diesel engines from 500kw to 3000kw. This series of turbochargers has a simple and compact structure, is sturdy and durable, has low operating cost, excellent performance and wide applicability. It is widely used in marine main engines, marine auxiliary engines, generator sets, diesel engines and other application fields.

    Main Technical Parameters

    ABB TPS 52-D01 Turbocharger Used In Marine Diesel Engine

    TypeOverall Dimensions (mm)Weight(Kg)
    ABCDEFGH
    TPS48185185111105164195154135115
    TPS52220215132129187224186161166
    TPS57270260160158232268225195266
    TPS61322306193188275320270234458

    Volume Technical Data

    ABB TPS 52-D01 Turbocharger Used In Marine Diesel Engine

    Our Service

    • All complete turbocharger series and spare parts provided.
    • Good quality promised.
    • Competitive price.
    • 24-hour service available.
    • One year warranty .
    • Samples and Drawings are welcomed for development.
    • Your professional consultant to meet your requirements.
    • Certificate can be provided.



    FAQ

    Questions & Answers
    Q: When will you deliver the goods?
    A: About one week after payment. It also depends on the quantity and whether you need mould making.
    Q: How about quality of products?
    A: We strictly control every detail of the products. Each product is inspected before leaving factory, with the top quality of China.
    Q: How about price?
    A: We will offer you the best and competetive price.
    Q:Do you accept customized orders?
    A: Yes. With design team, OEM and ODM orders are highly welcome.
    Q:Which transportation do you accept?
    A: DHL, FedEx, EMS etc, as for your convenience.
    Q:What about payment terms?
    A: T/T, L/C, PayPal and West Union are acceptable.
    Q:Can you accept mould making?
    A: Yes.
